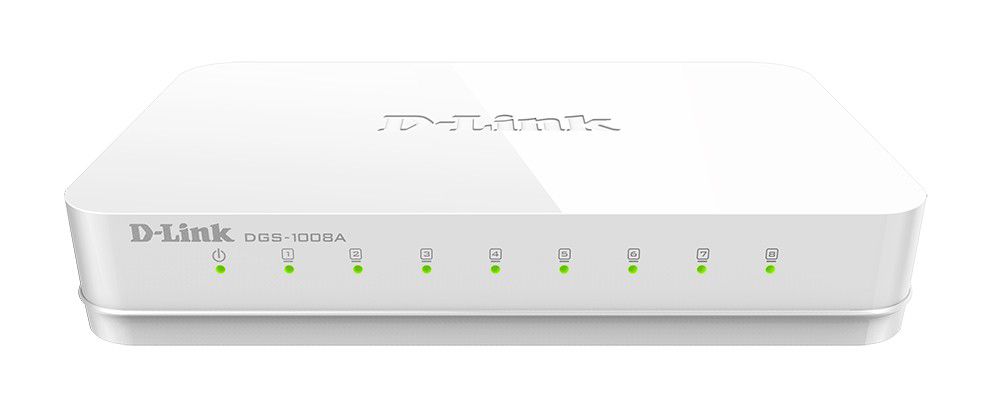

D-Link DGS-1008A 8-Port Unmanaged Gigabit Switch
-
D-Link DGS-1008A 8-Port Gigabit Unmanaged Switch
DGS-1008AE
-
The DGS-1008AE 8-Port Gigabit Desktop Switch is part of D-LinkÂ’s series of SOHO devices that allows you to easily expand and upgrade your network
-
Eight Gigabit Ethernet LAN ports for high-speed wired connections
-
The Cable Diagnostics function notifies users of cable conditions through product LEDs
-
Reduces power to a port when no link is detected
-
Adjust power to a port by detecting the length of the connected Ethernet cable
Technical Specifications
Device Interfaces
- Eight 10/100/1000 Gigabit LAN ports
- Advanced Features
- Green Ethernet
- 16 Gbps switching fabric
- Auto MDI/MDIX crossover for all ports
- Secure store-and-forward switching scheme
- Full/half-duplex for Ethernet/Fast Ethernet speeds
- IEEE 802.3x Flow Control
- Supports 9,216 Byte Jumbo Frames
- Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
- Supports Cable Diagnostics Function
Standards
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- ANSI/IEEE 802.3 NWay auto-negotiation
- IEEE 802.3x Flow Control
- IEEE 802.3az Energy-Efficient Ethernet (EEE)
Protocol
- CSMA/CD
Data Transfer Rates
- Ethernet
- 10 Mbps (half duplex)
- 20 Mbps (full duplex)
Fast Ethernet
- 100 Mbps (half duplex)
- 200 Mbps (full duplex)
Gigabit Ethernet:
- 2000 Mbps (full duplex)
Transmission Method
- Store-and-forward
MAC Address Table
- 8 K
MAC Address Learning
- Automatic Update
Packet Filtering/Forwarding Rates
- Ethernet
- 14,880 pps per port
Fast Ethernet
- 148,800 pps per port
Gigabit Ethernet
- 1,488,000 pps per port
RAM Buffer
- 128 KB per device
Power
- 5 V/1 A Power Adapter
Power Consumption
- Power On (Standby): DC input: 0.59 watts, AC input: 1.5 watts
- Maximum: DC input: 3.48 watts, AC input: 5.4 watts
Temperature
- Operating: 0 to 40 degree C (32 to 104 degree F)
- Storage: -10 to 70 degree C (14 to 158 degree F)
Humidity
- Operating: 10 percent to 90 percent non-condensing
- Storage: 5percent to 90percent non-condensing
MTBF
- 522,270 hours
Certifications
- CE class B,
- FCC class B
- ICES-003 Class B
- VCCI class B
- C-Tick
- cUL
- CB
- LVD
What's in the box
D-Link DGS-1008A 8-Port Unmanaged Gigabit Switch
