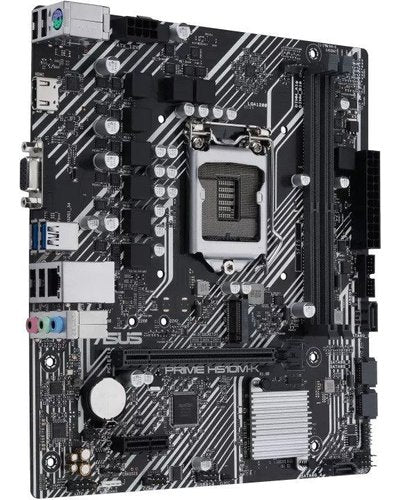

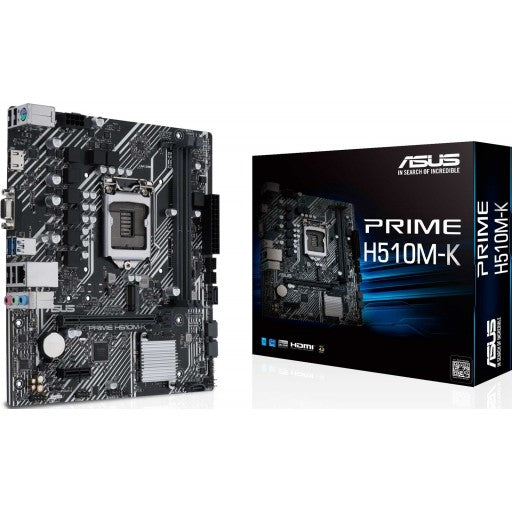

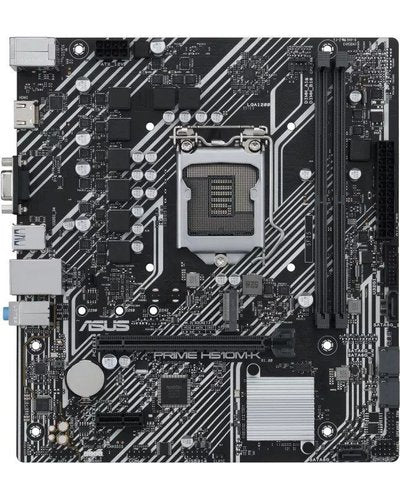

ASUS Prime H510M-K Motherboard

Description

ASUS PRIME H510M-K. Processor manufacturer: Intel, Processor socket: LGA 1200, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,PCI Express 3.0,SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. HDMI version: 1.4/2.0, USB connector type: USB Type-A

Brand ASUS
Series Prime H510M-K
Model 90MB17N0-M0EAY0
CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H510
Memory DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
Graphics * Graphics specifications may vary between CPU types.
** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz.
Expansion Slots Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel 10th Gen processors support PCIe 3.0 x16
Intel H510 Chipset
- 1 x PCIe 3.0 x1 slot
Storage Intel H510 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- * The M.2 slot Shares Bandwidth with the SATA6G_2 port. When a Device in SATA Mode is Installed on the M.2 Slot, the SATA6G_2 Port Cannot be Used.
USB 2 x USB 3.2 Gen 1 Type-A Ports
4 x USB 2.0 Type-A Ports
1 x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports
1 x USB 2.0 Header Supports Additional 2 USB 2.0 Ports
Audio Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Dedicated audio PCB layers

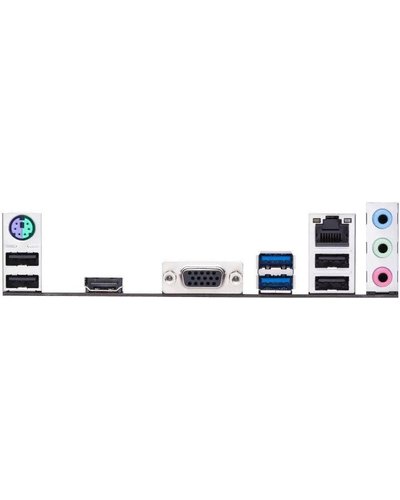

Back Panel I/O Ports 2 x USB 3.2 Gen 1 Type-A Ports
4 x USB 2.0 Type-A Ports
1 x D-Sub Port
1 x HDMI Port
1 x Intel I219-V 1Gb Ethernet Port
3 x Audio Jacks
1 x PS/2 Keyboard/Mouse Combo Port
Internal I/O Connectors Fan & Cooling Related
1 x 4-pin CPU Fan Header
1 x 4-pin Chassis Fan Header
Power Related
1 x 24-pin Main Power connector
1 x 8-pin 12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel Header
Special Features ASUS 5X PROTECTION III
- DIGI VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminium heatsink design
ASUS Lighting Control
- RGB header
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI VRM
- Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 ANCHOR
1 x Support DVD
1 x User manual
Operating System Windows 10
Form Factor Micro ATX
22.6cm x 20.3cm
Warranty Information
Warranty 3 Year Warranty
Product form

ASUS PRIME H510M-K. Processor manufacturer: Intel, Processor socket: LGA 1200, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel Core... Read more

Free pickup in our shop(s)

R 2,399.00R 1,999.00 Incl. VAT

Description

ASUS PRIME H510M-K. Processor manufacturer: Intel, Processor socket: LGA 1200, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium G. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2,PCI Express 3.0,SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 3840 x 2160 pixels. HDMI version: 1.4/2.0, USB connector type: USB Type-A

Brand ASUS
Series Prime H510M-K
Model 90MB17N0-M0EAY0
CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H510
Memory DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
Graphics * Graphics specifications may vary between CPU types.
** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz.
Expansion Slots Intel 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel 10th Gen processors support PCIe 3.0 x16
Intel H510 Chipset
- 1 x PCIe 3.0 x1 slot
Storage Intel H510 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
- * The M.2 slot Shares Bandwidth with the SATA6G_2 port. When a Device in SATA Mode is Installed on the M.2 Slot, the SATA6G_2 Port Cannot be Used.
USB 2 x USB 3.2 Gen 1 Type-A Ports
4 x USB 2.0 Type-A Ports
1 x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports
1 x USB 2.0 Header Supports Additional 2 USB 2.0 Ports
Audio Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
Back Panel I/O Ports 2 x USB 3.2 Gen 1 Type-A Ports
4 x USB 2.0 Type-A Ports
1 x D-Sub Port
1 x HDMI Port
1 x Intel I219-V 1Gb Ethernet Port
3 x Audio Jacks
1 x PS/2 Keyboard/Mouse Combo Port
Internal I/O Connectors Fan & Cooling Related
1 x 4-pin CPU Fan Header
1 x 4-pin Chassis Fan Header
Power Related
1 x 24-pin Main Power connector
1 x 8-pin 12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel Header
Special Features ASUS 5X PROTECTION III
- DIGI VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminium heatsink design
ASUS Lighting Control
- RGB header
Software Features ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
- TurboV EVO
- EPU
- DIGI VRM
- Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Accessories 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 ANCHOR
1 x Support DVD
1 x User manual
Operating System Windows 10
Form Factor Micro ATX
22.6cm x 20.3cm
Warranty Information
Warranty 3 Year Warranty
