Description
Important Note: This product is fitted with batteries that are rated for 150-200 use cycles (charges & discharges). It is also advised that batteries are fully charged before the next use cycle, which can take up to 12 hours. Batteries should never be depleted below 50% of their capacity during a use cycle. This product is ideal for stage 1 & stage 2 load shedding. During constant stage 4 - 6 load shedding, battery performance may decrease within a few months so it is advisable to keep the product switched off during these heavy load shedding periods as a full recharge is not possible to achieve.
Please consider products with Lithium batteries that offer 2000+ use cycles and can be fully depleted during every use.
Batteries are not covered by the product warranty.

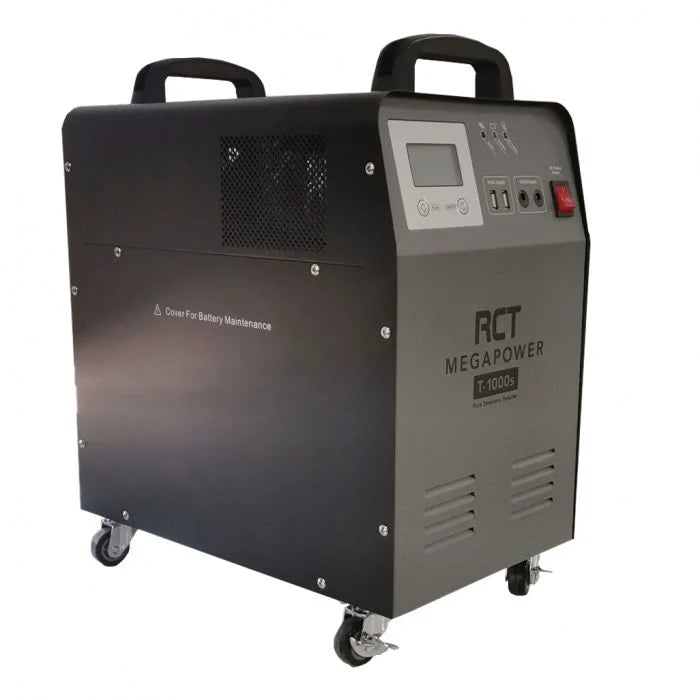

RCT MegaPower 1KVA/1000W Inverter Trolley With 1 x 100AH Battery
RCT MP-T1000S
Pure Sinewave for Sensitive Electronics & Motorized Loads
Microprocessor Control Optimizes Reliability
Input Power Factor Correction
Output Power Factor 1.0
Comprehensive Display Allows Easy Monitoring & Access of UPS Status
Built-in MPPT solar charger
2 x USB 5 V DC output and 2 x 12 V DC output
Battery cut off switch for safety
Pre-installed batteries
Specifications
RATED POWER: 1000 W
OUTPUT VOLTAGE: 220 VAC
OUTPUT FREQUENCY: 50 / 60 Hz
OUTPUT WAVEFORM: Pure Sine Wave
SOLAR INPUT
MAXIMUM PHOTOVOLTAIC
VOLTAGE (VDC): ? 25 V
CHARGE VOLTAGE (VDC): 10 V - 25 V
RATED CHARGE CURRENT (A): 30 A
MAXIMUM POWER (Wp): 360 Wp
VOLTAGE OVERCHARGE PROTECTION
(VDC): 14.2 V
VOLTAGE OVERCHARGE RECOVERY
(VDC): 14.0 V
VOLTAGE OF FLOATING CHARGE (VDC):
13.7 V
OUTPUT
AC OUTPUT:
2 x SA 3 Pin Socket - 230 V 50 Hz,
1000 VA / 1000 W Max. (Combined)
USB OUTPUT:
2 x USB Type A Port - 5 VDC 2 A Max.
DC OUTPUT:
2 x 12 V DC Port 2 A Max.
BATTERY TYPE:
1 x 12 DC 100 AH Deep Cycle
VRLA Gel Battery

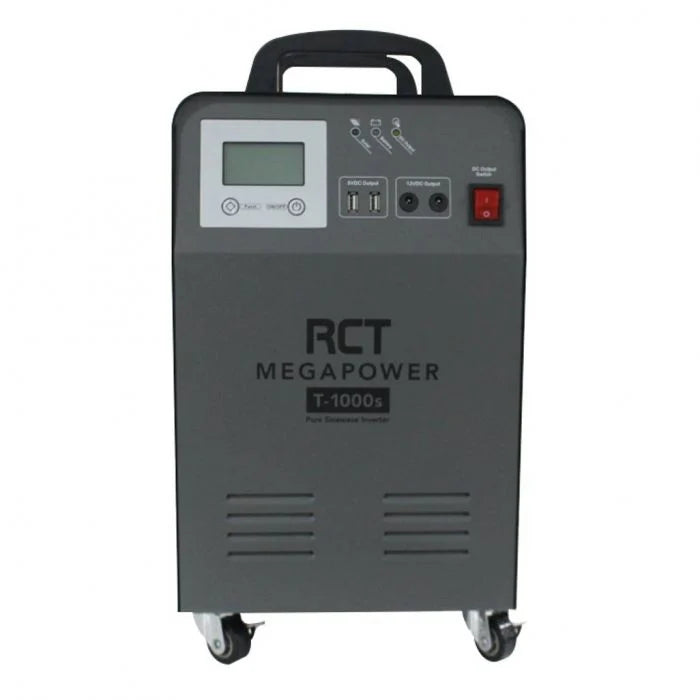

Ports and Interfaces
1. AC Output
2. Smart Cooling Fan
3. AC Input
4. Solar PV Input
5. Battery Extension
6. Battery Switch
7. Led Indicator
8. LCD Display
9. Function Buttons
10. On / Off Buttons
11. 5VDC Output
12. 12VDC Output
13. DC Output Switch
What’s in the box
1 x RCT MP-T1000S
