Vantec Link USB 3.0 Type C Gigabit Ethernet Adapter

Description

The Vantec Link USB 3.0 Type C Gigabit Ethernet Adapter enables you to add a wired network port using an existing USB C or USB Type-A port (with provided C to A adapter) to your laptop or desktop. It connects to the USB C or USB Type-A port and provides an RJ-45 connector that supports 10/100/1000BASE-T network faster when wireless connectivity is unreliable or inconsistent. It is packed with features and is perfect for laptops with USB C or USB Type-A ports such as the latest MacBook Pro, Chromebook Pixel with Thunderbolt 3 (USB C) ports.
Model:    CB-CU310GNA

Device Support:    USB 3.0 (Compatible with USB 3.1, USB 3.1 Gen 1/2)
USB connector:    USB C

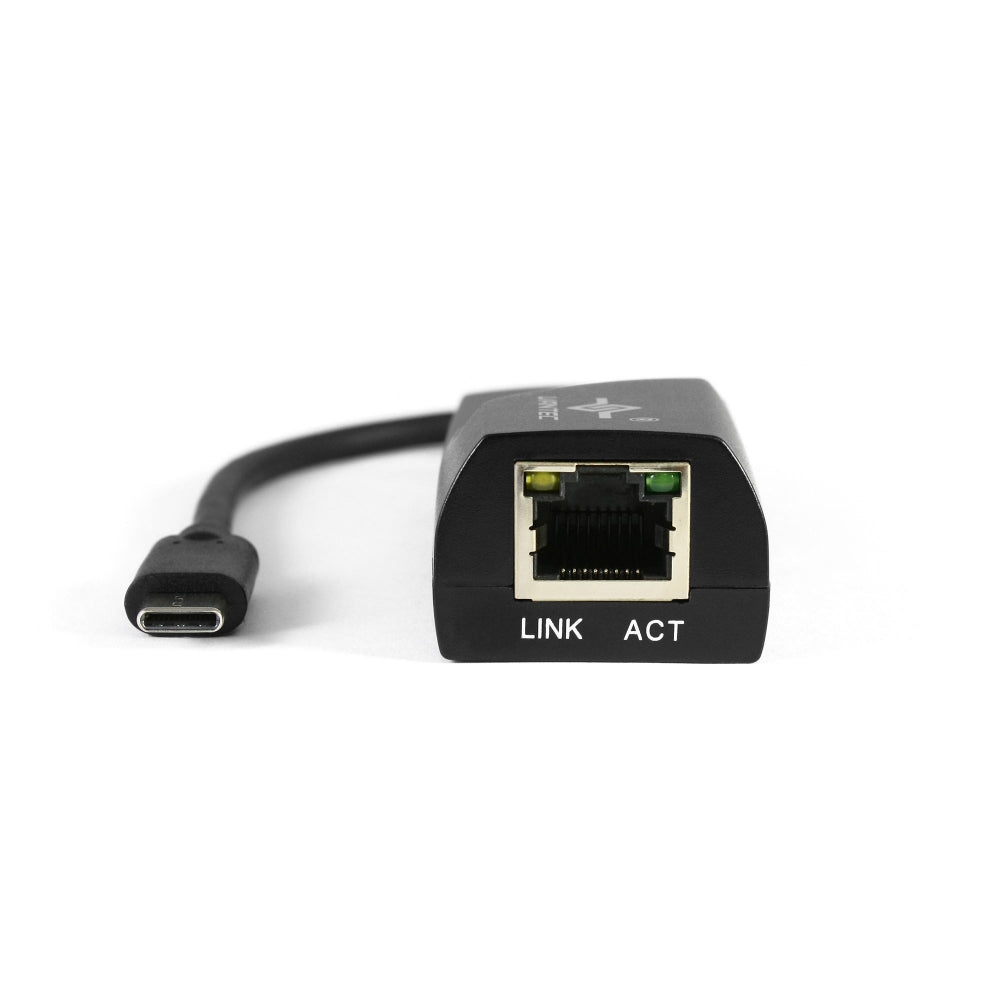

Gigabit network port:    RJ45 Ethernet (10/100/1000Mbps)
Power:    USB Bus Powered
Material:    ABS

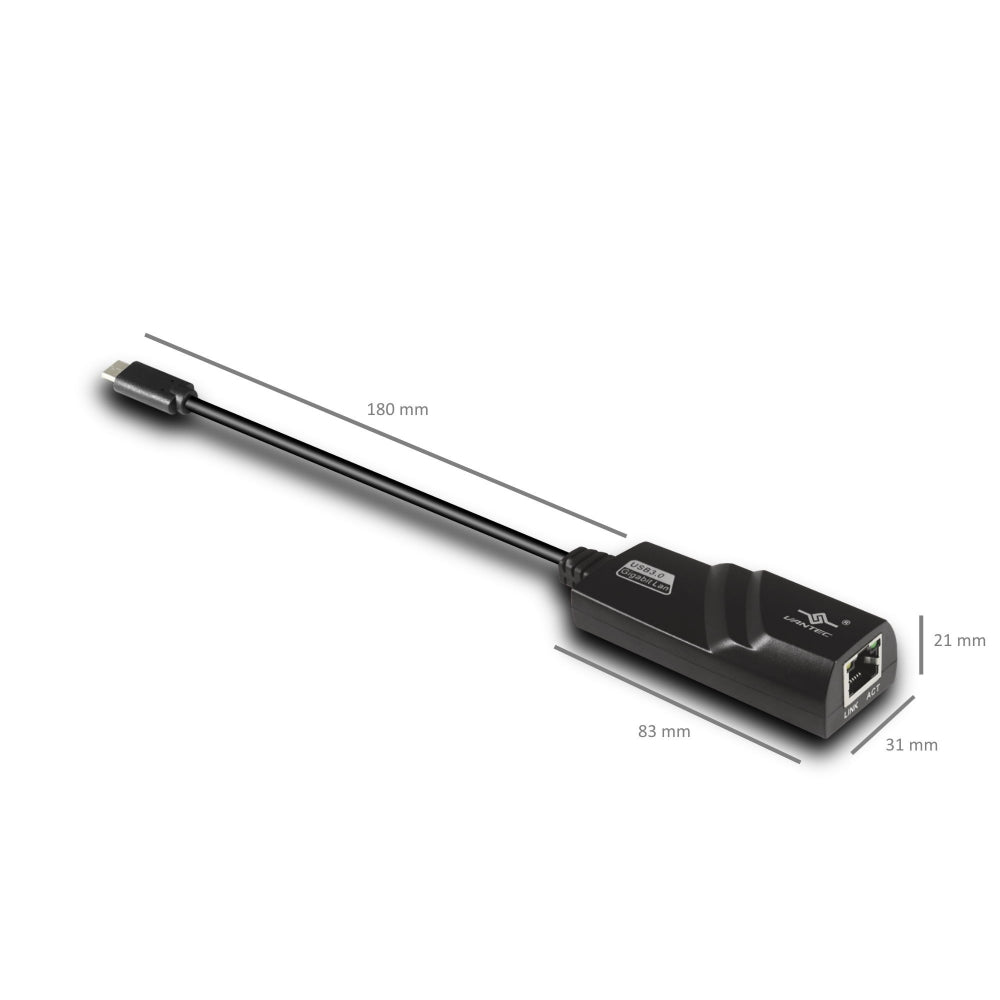

Dimension:    3.3 x 1.2 x 0.8 inches / 83 x 31 x 21 mm
Weight:    1.6 oz. /45 g



Environmental:

Operating Temperature 0 ℃ to +45℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +70℃
Storage Humidity 5% to 90% RH (no condensation)



System Requirements:

  • Microsoft Windows 7, 8, 10
  • Mac OS X 10.6 or later
  • Computer with available USB C or USB Type-A port (use with provided C to A adapter)

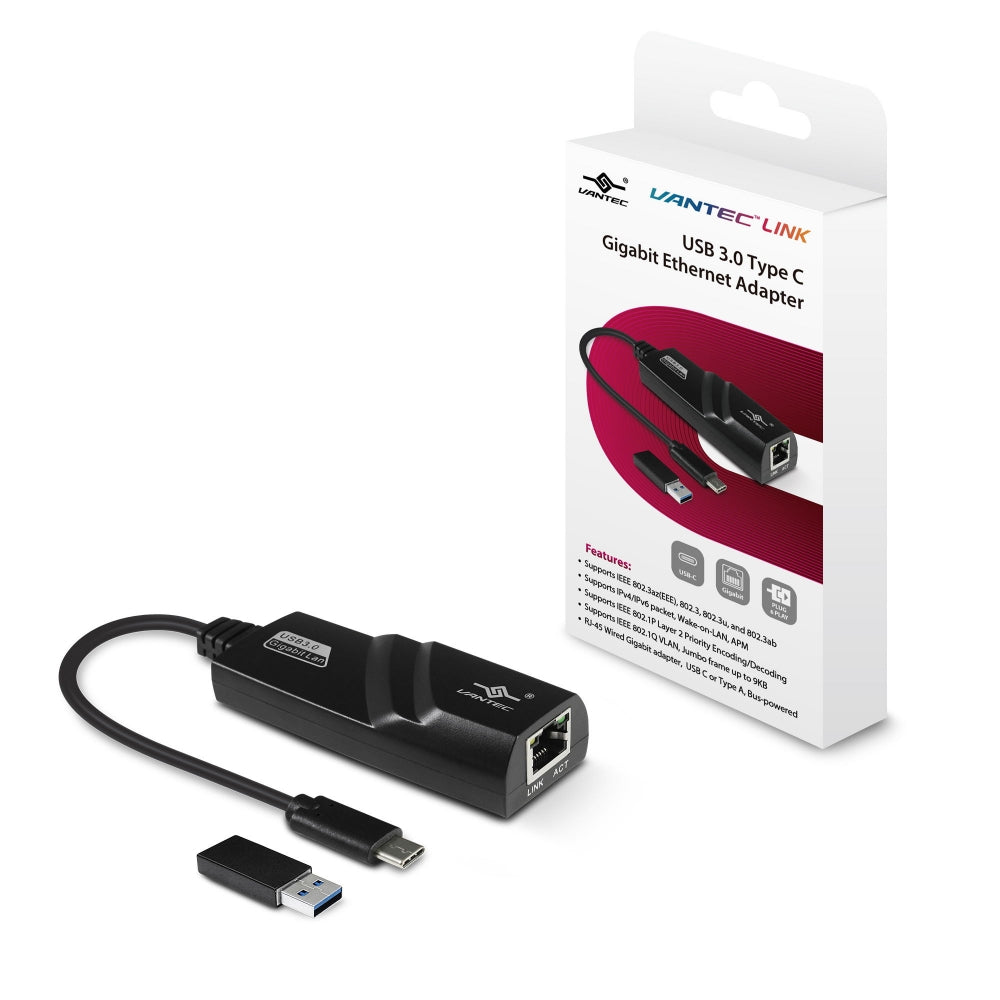

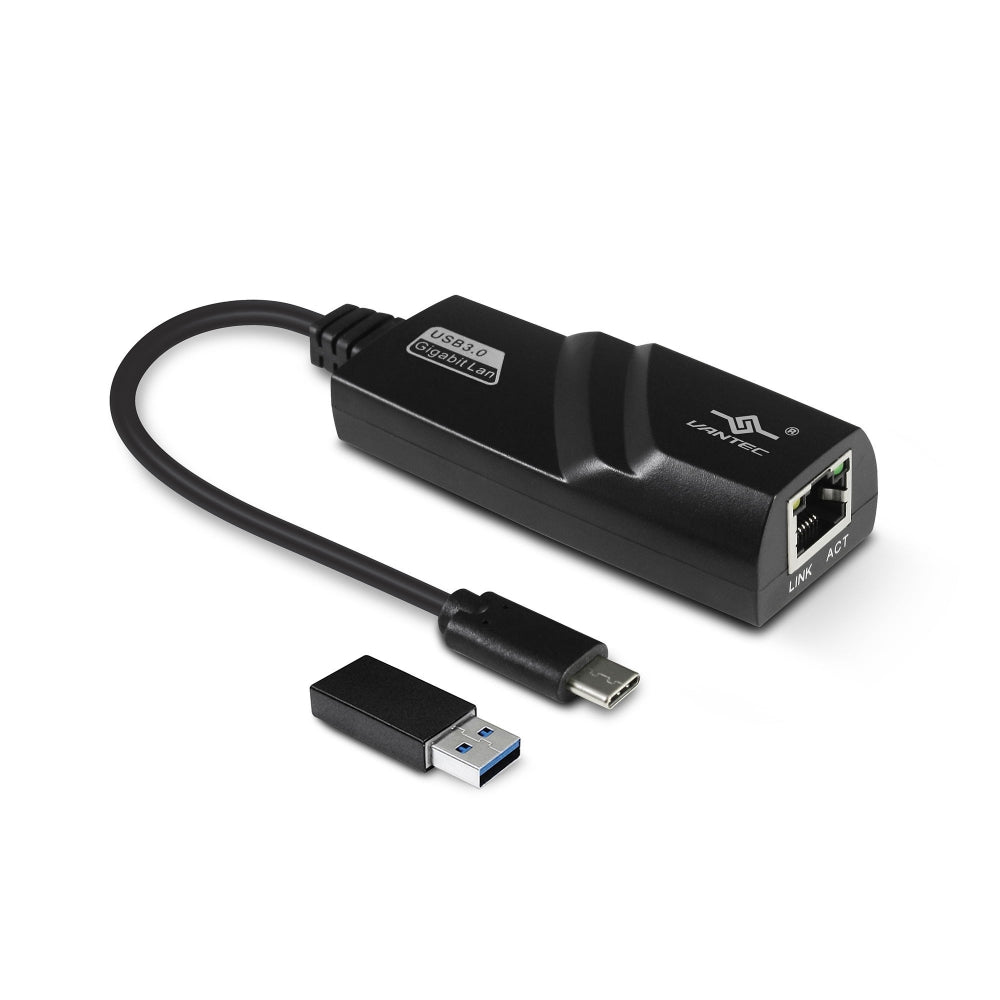

Whats Included: USB 3.0 Type C Gigabit Ethernet Adapter, USB C to A adapter, Quick Install Guide


UPC:  844767023335
EAN:  4716872103799

  • Supports IEEE 802.3az(EEE), 802.3, 802.3u, and 802.3ab
  • Supports IPv4/IPv6 packet, Wake-on-LAN, APM
  • Supports IEEE 802.1P Layer 2 Priority Encoding/Decoding
  • Supports IEEE 802.1Q VLAN, Jumbo frame up to 9KB
  • RJ-45 Wired Gigabit adapter,  USB C or Type A, Bus-powered
  • Gigabit Ethernet Controller:

    • Integrated 10/100/1000M transceiver
    • Auto-Negotiation with Next Page capability
    • Supports USB 3.0, 2.0; Supports CDC-ECM
    • Supports LPM (Link Power Management) Supports pair swap/polarity/skew correction Crossover Detection & Auto-Correction
    • Supports Wake-On-LAN, ‘RealWoW!’, Wake-On-WAN
    • Supports ECMA-393 ECMA ProxZzzy
    • Supports power down/link down power saving

    Software Offload:

    • Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP)
    • Segmentation Task-offload (Large send v1 and Large send v2) support
    • Supports jumbo frame to 9K bytes

    IEEE:

    • Supports Full Duplex flow control (IEEE 802.3x); Fully compliant with IEEE 802.3 and IEEE 802.3u
    • Supports IEEE 802.1P Layer 2 Priority Encoding; Supports IEEE 802.1Q VLAN tagging
    • Supports IEEE 802.3az-2010 (EEE); Microsoft AOAC (Always On Always Connected)
    • Supports 16-set 128-byte Wake-Up Frame pattern exact matching
    • Supports link change wake up; Supports Microsoft WPD (Wake Packet Detection)
    • Supports Protocol Offload (ARP & NS); Intel CPPM (Converged Platform Power Management)
    • Supports L1 with 3ms BESL (USB 2.0) Dynamic LTM messaging (USB 3.0) Supports U1/U2 (USB 3.0)
    • Supports selective suspend
